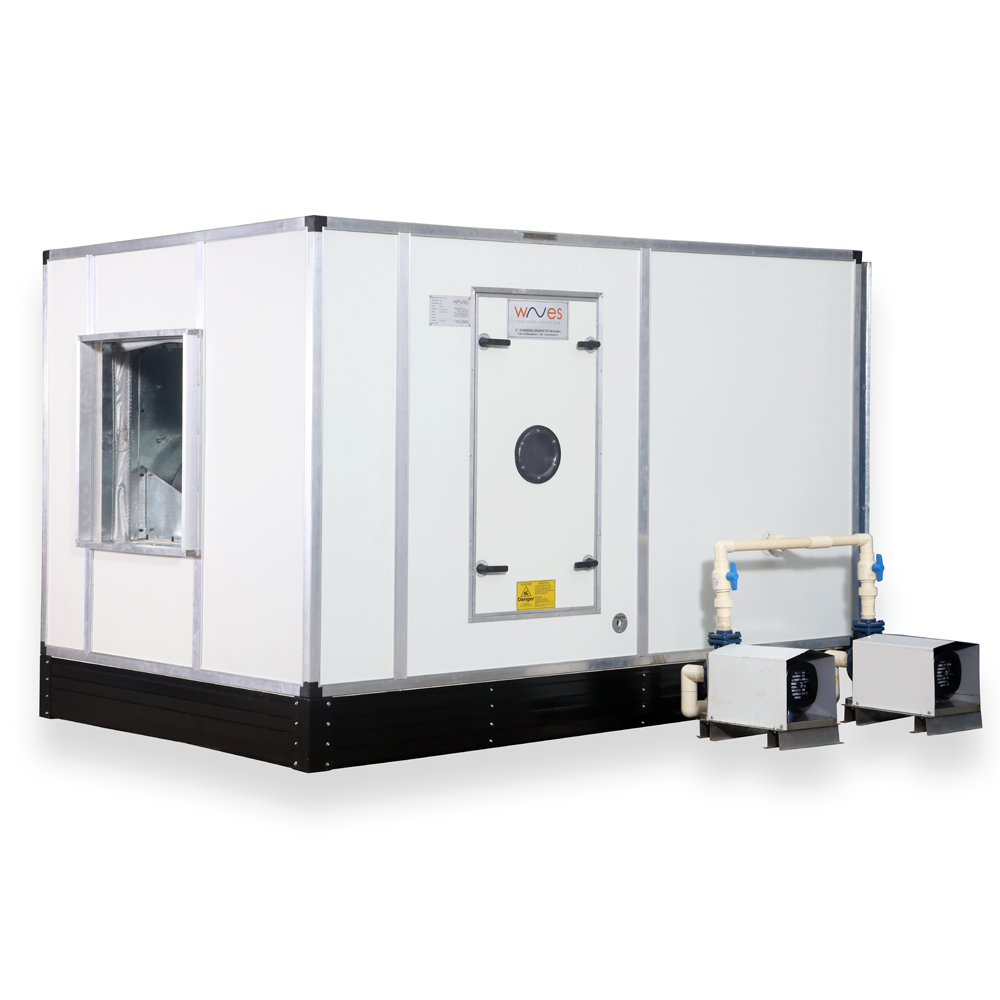

Wet air scrubber

The Wet Air Scrubber is one specific type of air scrubber which has spray chambers which combine the capture techniques of cyclones and spray towers. The gas streams enter into the chamber tangentially at high speeds. The high speeds will induce a cyclonic action, and the centrifugal force from this promotes droplet separation, allowing the use of a smaller droplet size which increases collection efficiency.

We at Waves Aircon Pvt. Ltd makes scrubbers which are more efficient than spray towers and have lower liquid requirements. But at the same time, they will also require more power due to higher pressure drops. They are preferred over spray towers for gas streams with heavier particulate loads.

FEATURES OF WET AIR SCRUBBER

  • It is finely tuned to eliminate odours and particulate associated with bacterial, viral and mould contamination.
  • The unit is designed for removal of large amounts of smoke, ash, animal dander and pollen.
  • It works well in medium to large commercial facilities like hospitals, clinics, schools, offices, prisons, manufacturing & agricultural facilities, and is ideal for disaster restoration firms.
  • It has a 12″ intake and exhaust hose flanges and filter monitoring gauge.
Download Specifications

Request a Quote

Key Features

Engineering Features

Eurovent-certified performance under ECP AHU
Double-skin panel construction
Custom-built to specified airflow & static pressure
Configurable filtration & coil options

Frequently Asked Questions

All products in this range are designed and manufactured by Waves Aircon Pvt. Ltd. (Waves Aircon Private Limited), an air-management system manufacturer based at the RIICO Industrial Area, Bhiwadi / Pathredi, Distt. Alwar, Rajasthan – 301019, India.
They are available in a range of sizes, dimensions, capacities and configurations. Several product descriptions state units are offered in various specifications and sizes and are made/customised as per the customer's requirement (e.g. AHUs, ducts, washers, coils, FCUs).
Capacity varies by product. Other items are quoted to the required duty, Exact sizing is confirmed at quotation stage.
Materials vary by product but commonly include galvanised steel (GSS), extruded aluminium profile, stainless steel, copper tubing/fins, PUF (CFC/HFC-free) insulation panels, mild steel and PVC/FRP (for scrubbers). Material choice depends on the product and duty requirement.
Yes. Across the range the descriptions emphasise rugged, robust construction, long functional life and resistance to corrosion (e.g. ducts, washers, coils, fan coil units).
Waves Aircon is described as an ISO 9001-2015 certified company. The Eurovent AHU (WDEV) is positioned around the Eurovent Certification Programme. For the Double Skin AHU the description cites: double-skin casing tested/approved to BS EN 1886:1998, centrifugal fan AMCA certified for sound & air performance, and heat transfer coils rated/approved to ARI Standard 410-2001.
Stated applications across the range include commercial and industrial buildings, malls/shopping complexes, offices, hospitals/clinics, hotels, multiplexes/cinema halls, clean rooms, manufacturing and processing plants, kitchen exhaust (dry scrubber with auto wash) and pollution-control duties (scrubbers).
Some products are offered for both. The Modular AHU description lists both indoor and outdoor units, and the Double Skin AHU notes an overhead canopy is available for outdoor installation (outdoor units referred to as rooftop units).
For the Double Skin AHU the description lists filter choices including Micro 'V' / HEPA / Bag and EU-4 / EU-7 / EU-9 / EU-13 / special grades, selected as per the required duty. The Dry Scrubber with Auto Wash is stated to deliver efficiency similar to or higher than EU9 grade air filters.
Yes. The coil range covers Chilled Water (CHW), Hot Water (HW) and Direct Expansion (DX) duties. The DX coil is stated to be available for R404A, R-22, R134a and R407C refrigerants, with various fins-per-inch, row depths, tube lengths and face heights.
Yes – several descriptions note that products are conventionally / properly packaged to prevent damage during transit (e.g. ducts and coils).
Several are described as such: aluminium ducts are called eco-friendly and highly energy efficient; the Industrial Air Washer is described as eco-friendly with a compact design consuming only ~40% of the space of conventional systems; the Modular AHU and Dry Scrubber with Auto Wash highlight low maintenance / low running cost.
Pricing is on request – each product page carries a Request a Quote enquiry form. You can also contact Waves Aircon directly: +91 8502-005-500 / care@wavesaircon.in.
Waves Aircon Pvt. Ltd., G-797 and H-42, 43, RIICO Industrial Area, Bhiwadi, Distt. Alwar, Rajasthan – 301019 (also SP3-803, RIICO Industrial Area, Pathredi). Phone +91 8502-005-500, email care@wavesaircon.in.
